900MM / 1000MM / 1200MM / 1500MM / 1800MM Heated Air Curtain With High Efficient Safe PTC Heater
PTC Heating Air Curtain - Cross Flow Fan Aluminum Blower With Remote Control
Full metal casing with unique design / Cross Flow Blower / Uniform Forced Airflow
Effective barrier reduce losses without having to constantly open and close doors
Invisible air door builds effective barrier / Reduce inside temperature loss .
An air curtain is a product which creates a uniform stream of directed air, whether heated or unheated, across an opening to create a barrier inhibiting the transfer of heat and particulate matter from one zone to the other. An appropriately designed system will create this barrier across the entire height and width of the opening to create the effects.
Heated Air Curtains -- Product Parameter
110V / 60Hz , 110V / 50Hz , 220V / 60Hz are all available
| Model | Voltage/ Frequency | Input Power | Air
Velocity | Air Volume | Noise | Fuselage Size | Mounting Height |
| (V/Hz) | motor (w) | Heater
(KW) | (m/s) | (m³/h)/CFM | (dB) | (mm) | (m) |
| RM-1209N-D/Y | 380/50 | 150 | 3.5 | 7-8 | 1000/588 | ≤45 | 900×220×195 | 2.5 |
| RM-1210N-D/Y | 380/50 | 180 | 4.5 | 7-8 | 1100/647 | ≤45 | 1000×220×195 | 2.5 |
| RM-1212N-D/Y | 380/50 | 180 | 4.5 | 7-8 | 1500/822 | ≤47 | 1200×220×195 | 2.5 |
| RM-1215N-D/Y | 380/50 | 220 | 5.5 | 7-8 | 1800/1059 | ≤47 | 1500×220×195 | 2.5 |
| RM-1218N-D/Y | 380/50 | 280 | 8 | 7-8 | 2160/1271 | ≤49 | 1800×220×195 | 2.5 |
| RM-1220N-D/Y | 380/50 | 320 | 10 | 7-8 | 2400/1412 | ≤51 | 2000×220×195 | 2.5 |
Remote control applicable to replace manual control
Long distance remote easily control
Quite Running no disturbing / Large air volume less noise / Let your baby have sleep well
High Efficiency / Safe PTC Heater

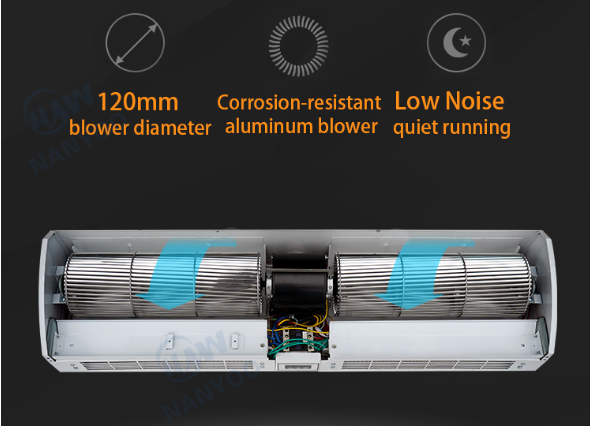

120MM ALUMINUM BLOWER / Adopt aluminum blower of diameter 120mm, Larger air volume , lower noise ,
safe and durable , two - speed - temperature conversion freely
Non-charged PTC heater
PTC heater can be disassembled and cleaned separately ,automatic delay when power off ,
PTC heater has high power, large heat , no electricity on the surface safe runing .
Heated Air Curtains -- Product Parameter
What is the main functions of the air curtain?
1. Energy conservation
2. Isolate the smell
3. Dust-proof, insect prevention
4. Heat air ccurtain
If you have any questions about our products, please contact us and we will give you some satisfactory reply.
