HOT AIR COMES AT YOUR NEEDS

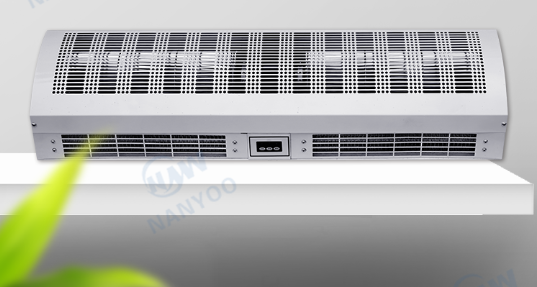

Cross Flow Fan Aluminum Blower 1000CMH PTC Heated Air Curtain
PTC Heating Air Curtain - Cross Flow Fan Aluminum Blower With Remote Control
HEATED AIR CURTAIN FEATURE
- Full Metal Housing with unique design
- Cross Flow Blower
- Uniform Forced Airflow
Heated Air Curtains -- Product Parameter
110V / 60Hz , 110V / 50Hz , 220V / 60Hz are all available
| Model | Voltage/ Frequency | Input Power | Air
Velocity (m/s) | Air Volume | Noise | Fuselage Size | Mounting Height |
| (V/Hz) | motor (w) | Heater
(KW) | (m/s) | (m³/h)/CFM | (dB) | (mm) | (m) |
| RM-1209N-D/Y | 380/50 | 150 | 3.5 | 7-8 | 1000/588 | ≤45 | 900×220×195 | 2.5 |
| RM-1210N-D/Y | 380/50 | 180 | 4.5 | 7-8 | 1100/647 | ≤45 | 1000×220×195 | 2.5 |
| RM-1212N-D/Y | 380/50 | 180 | 4.5 | 7-8 | 1500/822 | ≤47 | 1200×220×195 | 2.5 |
| RM-1215N-D/Y | 380/50 | 220 | 5.5 | 7-8 | 1800/1059 | ≤47 | 1500×220×195 | 2.5 |
| RM-1218N-D/Y | 380/50 | 280 | 8 | 7-8 | 2160/1271 | ≤49 | 1800×220×195 | 2.5 |
| RM-1220N-D/Y | 380/50 | 320 | 10 | 7-8 | 2400/1412 | ≤51 | 2000×220×195 | 2.5 |
Invisible air door builds effective barrier / Reduce inside temperature loss .
Quite Running no disturbing /large air volume less noise / Let your baby have sleep well
High Efficiency / Safe PTC Heater
Metal blower - Adopt aluminum blower of diameter 120mm ,
Larger air volume , lower noise ,safe and durable , two - speed three - temperature conversion freely
Non-charged PTC heater
PTC heater can be disassembled and cleaned separately , automatic delay when power off ,
PTC heater has high power, large heat , no electricity on the surface safe runing .
Remote control applicable to replace manual control
Long distance remote easily control
Company Profile
Founded in 1987 , Foshan Nanhai Nanyang Electric Appliance& Motor Co.,Ltd , (NANYOO)
has specialized in the manufacturing ,Marketing and R&D of Air Curtains , Inline Fans , HRV, Cabinet Fans
and Air Purifier for over 30 years , and become a leading professional science and technology enterprise.
Especially widely used in the door position of the wind curtain of public places manufacturers.
NANYOO has passed ISO9001 international quality management system and ISO14001 environmental management system certification. The products have passed CCC, CE, CB, RoHS and SAA certification.

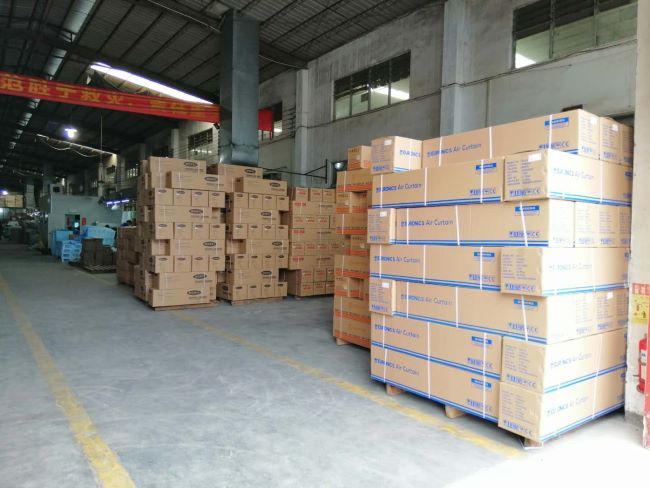

Packing&Shipping
Packing : Carton packaging with foam & PE poly bag protection.
