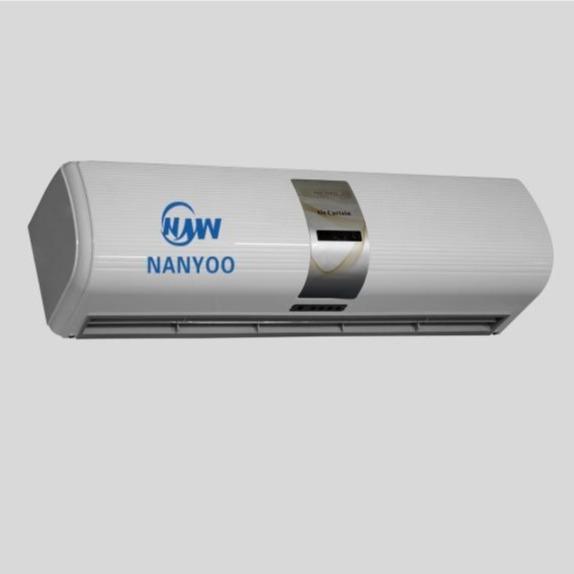

Commercial ABS Plastic Door Air Barrier / Centrifugal Air Curtain Low Noise
Use For Coffee Shop / Bars / Lounges
Centrifugal Flow Door Air Curtain ( Barrier ) - Specification
| Model | Input Power (W) | Air Velocity (m/s) | Air Volume (m³/h)/CFM | Noise (dB) | Unit Size | Mounting Height |
| H | M | L | H | M | L | H | M | L | H | M | L | (mm) | (m) |
| FM-3509QS-L/Y(X) | 200 | 180 | 150 | 15.5 | 14.3 | 12.5 | 1080/635 | 996/586 | 870/512 | ≤44 | ≤42 | ≤41 | 900x230x220 | 3-3.5 |
| FM-3512QS-L/Y(X) | 250 | 225 | 185 | 15.5 | 14.3 | 12.5 | 1450/853 | 1337/786 | 1168/687 | ≤45 | ≤43 | ≤42 | 1200x230x220 | 3-3.5 |
| FM-3515QS-L/Y(X) | 325 | 290 | 240 | 15.5 | 14.3 | 12.5 | 1800/1059 | 1600/941 | 1398/822 | ≤48 | ≤46 | ≤44 | 1500x230x220 | 3-3.5 |
| FM-4509QS-L/(Y)(X) | 350 | 260 | 200 | 19 | 16 | 12.5 | 1320/776 | 1100/647 | 860/506 | ≤46 | ≤44 | ≤42 | 900x230x220 | 4-4.5 |
| FM-4512QS-L/(Y)(X) | 440 | 320 | 225 | 19 | 16 | 12.5 | 1770/1041 | 1455/856 | 1150/676 | ≤47 | ≤45 | ≤43 | 1200x230x220 | 4-4.5 |
| FM-4515QS-L/(Y)(X) | 575 | 435 | 330 | 19 | 16 | 12.5 | 2200/1294 | 1850/1088 | 1450/853 | ≤50 | ≤47 | ≤45 | 1500x230x220 | 4-4.5 |
| FM-5509QS-L/(Y)(X) | 440 | 325 | 250 | 22 | 18.5 | 14.5 | 1520/894 | 1270/747 | 1000/588 | ≤52 | ≤50 | ≤47 | 900x230x220 | 5-5.5 |
| FM-5512QS-L/(Y)(X) | 530 | 385 | 270 | 22 | 18.5 | 14.5 | 2027/1192 | 1670/1044 | 1330/782 | ≤54 | ≤52 | ≤50 | 1200x230x220 | 5-5.5 |
| FM-5515QS-L/(Y)(X) | 710 | 535 | 405 | 22 | 18.5 | 14.5 | 2543/1496 | 2135/1256 | 1680/988 | ≤55 | ≤53 | ≤51 | 1500x230x220 | 5-5.5 |
DOOR AIR BARRIER FEATURES
- Plastic appearance with special and elegant design .
- Four control modes to meet different clients needs and locations
Design beautiful , Simple Structure , Easy Installation
White and Gray color for options
providing a visual senstation while enjoy your life at home
Door Air Barrier With Filter / Easy Cleaning
Motor :Mute Centrifugal - Flow Turbine
Greater air pressure , Air velocity is stronger , lower noise
Working principle : SAVING 90% ENERGY
Air curtain , also known as Air door , Air Barrier , widely used in Factories , Shops , Restaurants , Pharmacies ,
Cold storage , Hotels , Hospitals , Airports , Stations and other environments and all air-conditioned place .
Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean , prevent air circulating
Indoor and Outdoor air , reduce energy consumption , prevent the intrusion of dust , insects and harmful gases ,
and provide a comfortable working , shopping and leisure environment .
Company Introduction
Foshan Nanhai Nanyang Electric Appliance& Motor Co.,Ltd (NANYOO) was established in 1987,
has specialized in the manufacturing ,Marketing and R&D of Air Curtains , Inline Fans , HRV, Cabinet Fans
and Air Purifier for over 30 years , and become a leading professional science and technology enterprise.
Especially widely used in the door position of the wind curtain of public places manufacturers.
NANYOO has passed ISO9001 international quality management system and ISO14001 environmental management system certification. The products have passed CCC, CE, CB, RoHS and SAA certification.
If you have any questions about our products,
Please contact us and we will give you some satisfactory reply
